Description

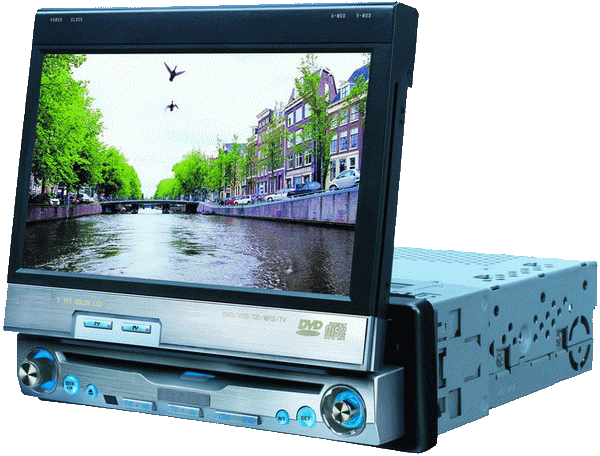

ONE DIN DVD WITH 7` TFT LCD MONITOR

Unit size

180(W)*190(L)*5(H)mm

Rear Box Size

178(W)*180(L)*4(H)mm

Unit N.W.

4kg

Gift Box size

345(W)*315*210

Unit G.W.

5kg

Carton size

685*320*430mm

QTY/ Carton

4pcs

N.W

16kg

G.W

22kg

Voltage

DC  10V-15V

Current

1.5A (Amplifier off) MAX 10A

Working Temp

-20~60 C

Store Temp

-30~80 C

Inputs

Two channels of video input (Comprise one channel of back running video)

Screen size

16:9 7 inches (diagonal)

Resolution

1440x234 pixels

Dot pitch

0.107(H) ║а0.372(V)mm

FM/AM Band

FM:87.5-108MHz  AM:522-1611MHz

FM/AM  Memory capacity

FM:32  AM:16

TV Receive System

PAL or NTSC

Seeking

Automatic

Memory method

Automatic

TV Memory capacity

40 Channels

Disc

12cmDVD/VCD/CDMP3/CDR  Multi-region

Maximum power output

45W

Full power output

4╕╦(4-8╕╦)

FUNCTION

1.Play all-region DVD / VCD / CD / MP3 / CD-R 2.Automatically detect light intensity and adjust brightness of the screen
3.Auto-save and auto-resume adjusted parameter and position
4.Full-function remote control
5.Faceplate angle adjustable
6.With OCD menu instruction
7.With time indication
8.Special built-in reverse video input, while backing the car, auto-change to rearview lens and display the condition of reverse
